FB102-77 - 1/2" ID, RFI Range 1-10 MHz

FB102-77-1

FB102-77 - 1/2" ID, RFI Range 1-10 MHz FB102-77-1

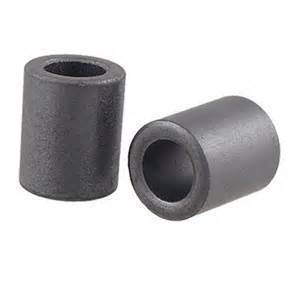

Ferrite Slip On Bead, ID = .505in/12.8mm, Mix 77, 1 piece

$4.95 In stock
MPN:FB102-77
Initial Permeability::2000
Material::MnZn
Max cable size - in/mm::.5/12.6
OD (A) - in/mm::1.02/25.9
ID (B) - in/mm::.505/12.8
Length (C) - in/mm::1.125/28.6
Z (ohms per bead - single turn 1 MHz)::52
Z (ohms per bead - single turn 10 MHz)::25
Z (ohms per bead - single turn 25 MHz)::23
Case/Box lot size:212
