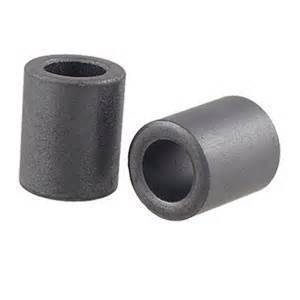

FB102-75 - ID=1/2", RFI Range 150Khz-10 MHz

FB102-75

FB102-75 -  ID=1/2", RFI Range 150Khz-10 MHz FB102-75
$3.5 In stock
MPN:FB102-75
Initial Permeability::5000
Material::MnZn
Max cable size - in/mm::.5/12.6
OD (A) - in/mm::1.02/25.9
ID (B) - in/mm::.505/12.8
Length (C) - in/mm::1.125/28.6
Z (ohms per bead - single turn 200 KHz)::30
Z (ohms per bead - single turn 500 KHz)::83
Z (ohms per bead - single turn 1 MHz)::120
Z (ohms per bead - single turn 2 MHz)::70
Z (ohms per bead - single turn 5 MHz)::54
Case/Box lot size:212
FB102-75 -  ID=1/2", RFI Range 150Khz-10 MHz
