Binocular (2 hole) Ferrite Core, Mix 61 - 5 pack - 1"/27mm tall

BN6802-61-5

Binocular (2 hole) Ferrite Core, Mix 61 - 5 pack - 1"/27mm tall BN6802-61-5

Binocular Cores

Multi Aperture Cores Figure 1 jpg - Store

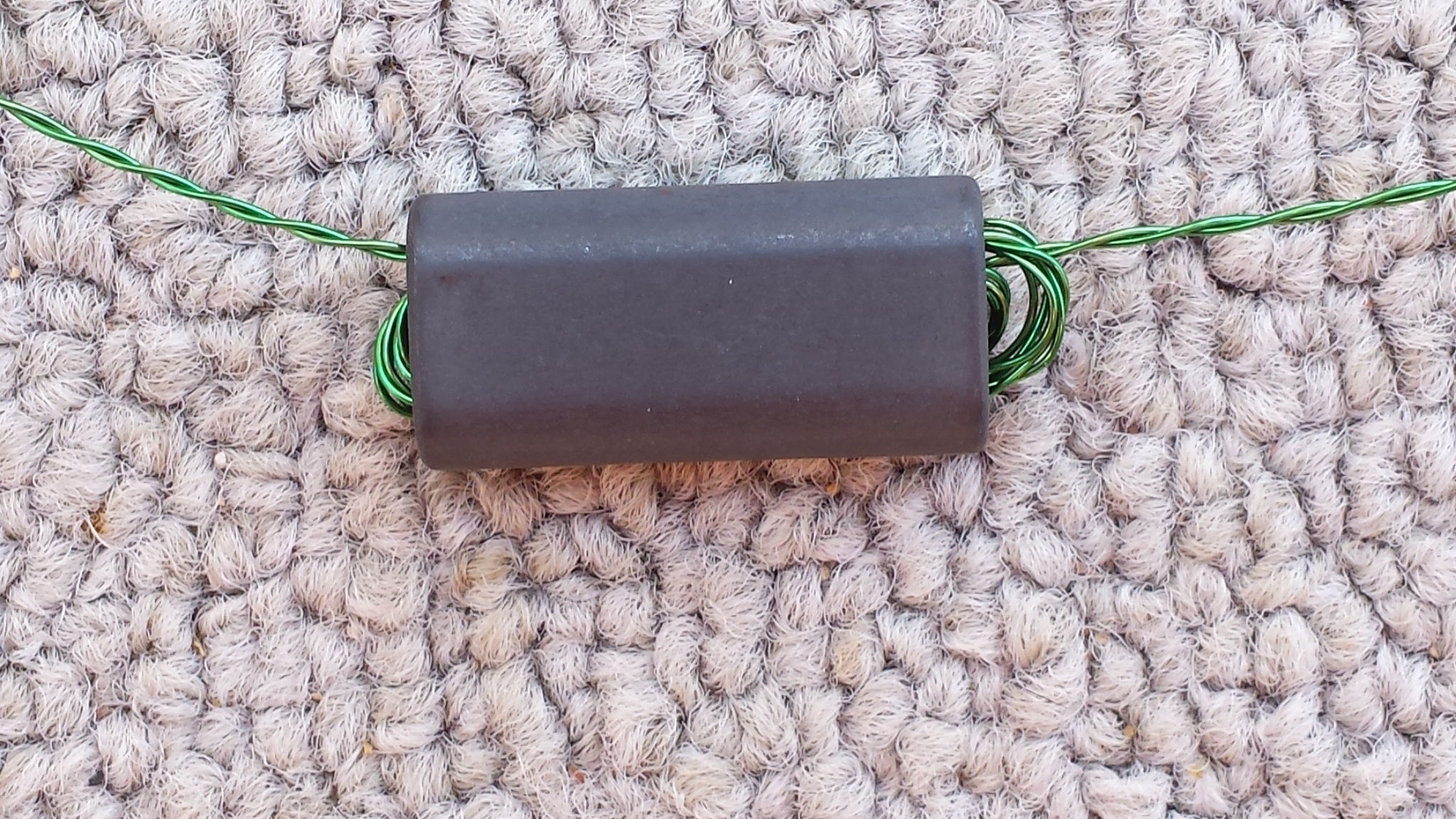

Ferrite binocular cores are wonderful for making many different ratios of voltage baluns/ununs and magnetic baluns for balanced loads. Typical ranges of ratios are 1:1 to 16:1. Our 9:1 beverage transformer uses the BLN68-61 core featured below. Shown in the picture below is a 1:1 current balun made with a BLN61-61 and #28 wire.

5 pack

$9.95 In stock
MPN:BLN6802-61-5
A (inches/mm):.525 in/13.3mm
B (inches/mm):1.062 in/27mm
C (inches/mm):.295 in/7.5mm
E (inches/mm):.225 in/5.7mm
H (inches/mm):.150 in/3.8mm
Impedance (ohms) @ 100 MHz:300
Impedance (ohms) @ 250 MHz:425
A(L):600 minimum
Units in Product:5
Price per unit:1.95
