50:450 ohm (9:1) CUBE™ Unun, 1.8-61 MHz, 1.5 KW, End Fed

CU-9-1500

50:450 ohm (9:1) CUBE™ Unun, 1.8-61 MHz, 1.5 KW, End Fed CU-9-1500

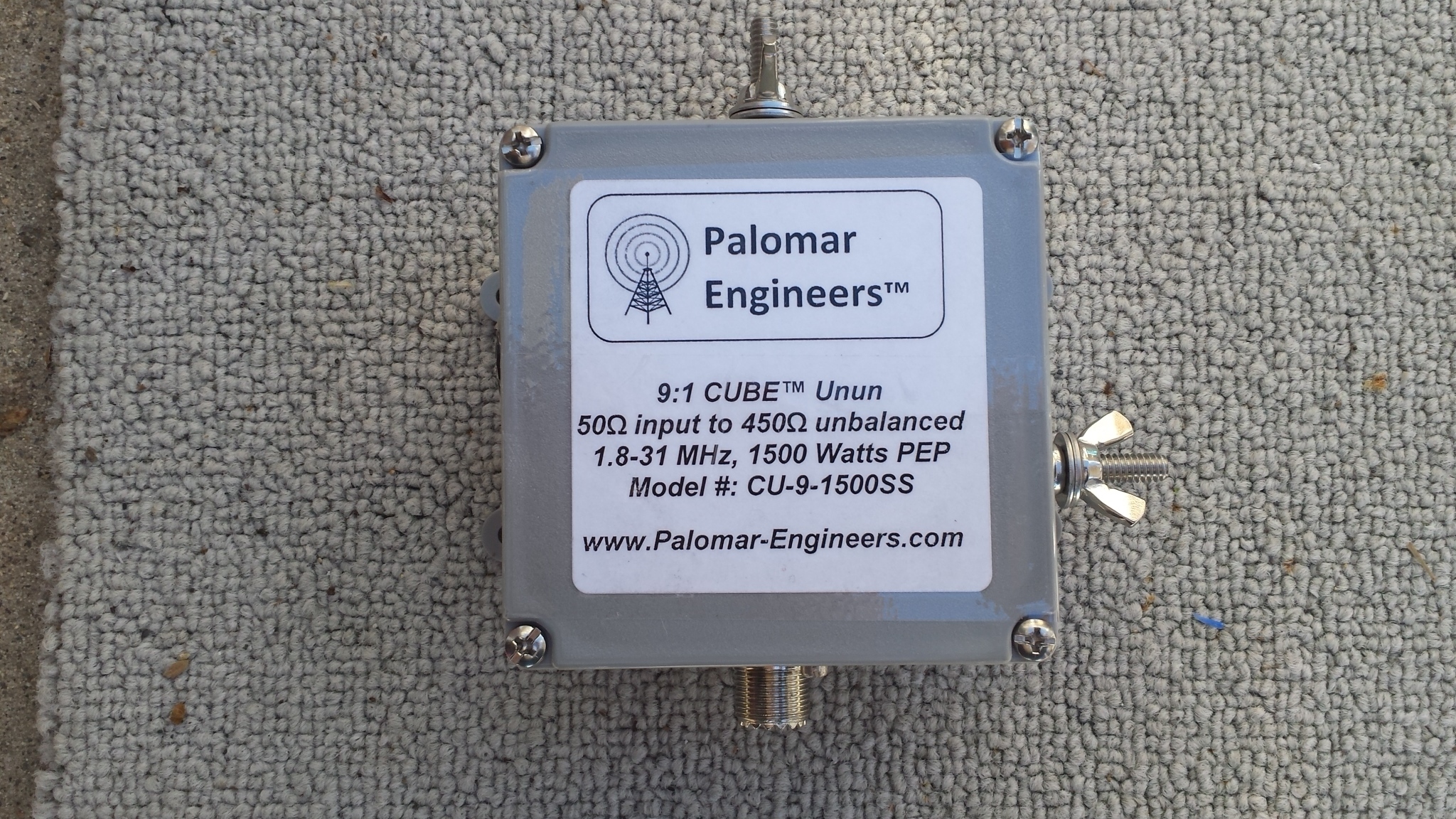

Model CB-9-1500 is a 9:1 quad core, balanced voltage balun and CU-9-1500 is a 9:1 quad core unun housed in a NEMA enclosure box (4″ x 4″ x 2″) with top studs (TS) used to translate a 50 ohm input up to 450 ohms at RF power levels up to 1500 watts PEP when used with a matched load. With a matched 450 ohm load the SWR over the frequency range 1.8 to 61 MHz is less than 2:1 on the coax feed side. SO-239 input and top studs/wingnuts (balun) and top stud/wingnut and side stud/wingnut for unun.

$79.95 In stock
UPC:Does not apply
Brand:Palomar Engineers
MPN:CU-9-1500
Type:NEW
input ohms/output ohms::50 in / 450 output
Frequency Range (MHz):1-31
PEP Power Rating (watts)::1500
