1:1 CUBE™ Chokes

HF 1-61 MHz coax feed line common mode chokes

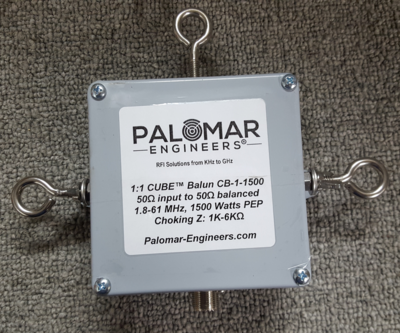

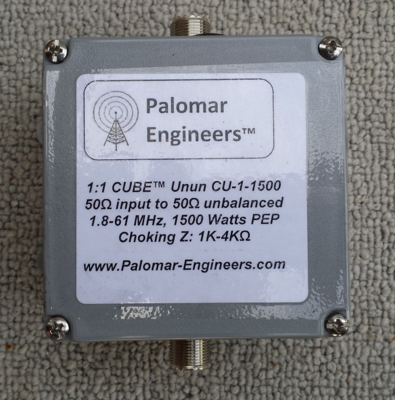

1:1 feed line Chokes (also known as feed line current chokes, common mode chokes, line isolators, current mode chokes, and 1:1 baluns/ununs) are available in kit form or assembled form in a weatherproof Current Unun and Balun Enclosure which we call a CUBE™. All 1:1 chokes are ferrite based and are designed for 50 ohm coaxial cable input and 50 ohm output. 1:1 Ferrite toroidal or bead chokes have a higher choking impedance than our popular Sleeve Chokes and various models are available for specific frequency ranges and power levels.

1:1 Chokes are useful for choking common mode currents that may flow on the exterior of the coax cable shield while allowing the signals on the interior of the shield and the center conductor to flow unaffected and keeping the common mode current on the antenna. They isolate the coax shield and prevent it from becoming part of the antenna system.

1:1 Chokes are useful between balanced lines for center fed dipoles at their fundamental frequency (468/f (MHz), beam antennas with a 50 ohm balanced driven element, G5RV, loops, yagis, NVIS antennas, mobile installations, portable antennas and anywhere common mode current (or RFI) is a problem.  They are also helpful between transmitter and linear amplifier or between linear amp and antenna tuner or as isolation chokes where higher choking impedance is needed (in the range of 2K-7K ohms).  Our slip on  BA-58 and BA-8 sleeve chokes  or Kit 105/110 Snap On Chokes provide between 200 – 1200 ohms choking impedance for a comparison and our Super-Choker™  baluns go up to 9K ohms for selected frequency ranges.

1:1 Chokes are also very useful as feed line current chokes at the “radio end” of the antenna where they choke common mode current induced onto the coax shield from radiated waves (from your antenna, and other sources such as DSL routers, computer devices, plasma TVs, etc. originating in your house or your neighbor’s house).  For RFI issues see RFI/EMI Solutions for general use or for specific radios and devices.

For best results we recommend a 1:1 choke at the “antenna end” of the coax and another at the “radio end” of the coax. (A side benefit is a reduction in noise level caused by common mode currents). 1:1 chokes are also available as Sleeve Chokes (Slip on or Snap on) for ease of installation and light weight on the antenna.
